LS-C83-A smart lock for glass doors
According to the datasheet: app, fingerprint, PIN code, RFID card, mechanical key, Bluetooth.
The lock communicates with the TTLock app via Bluetooth within a range of about 5 m. For remote control over the internet you need the G2 gateway – a generic TTLock Wi-Fi gateway, available separately.

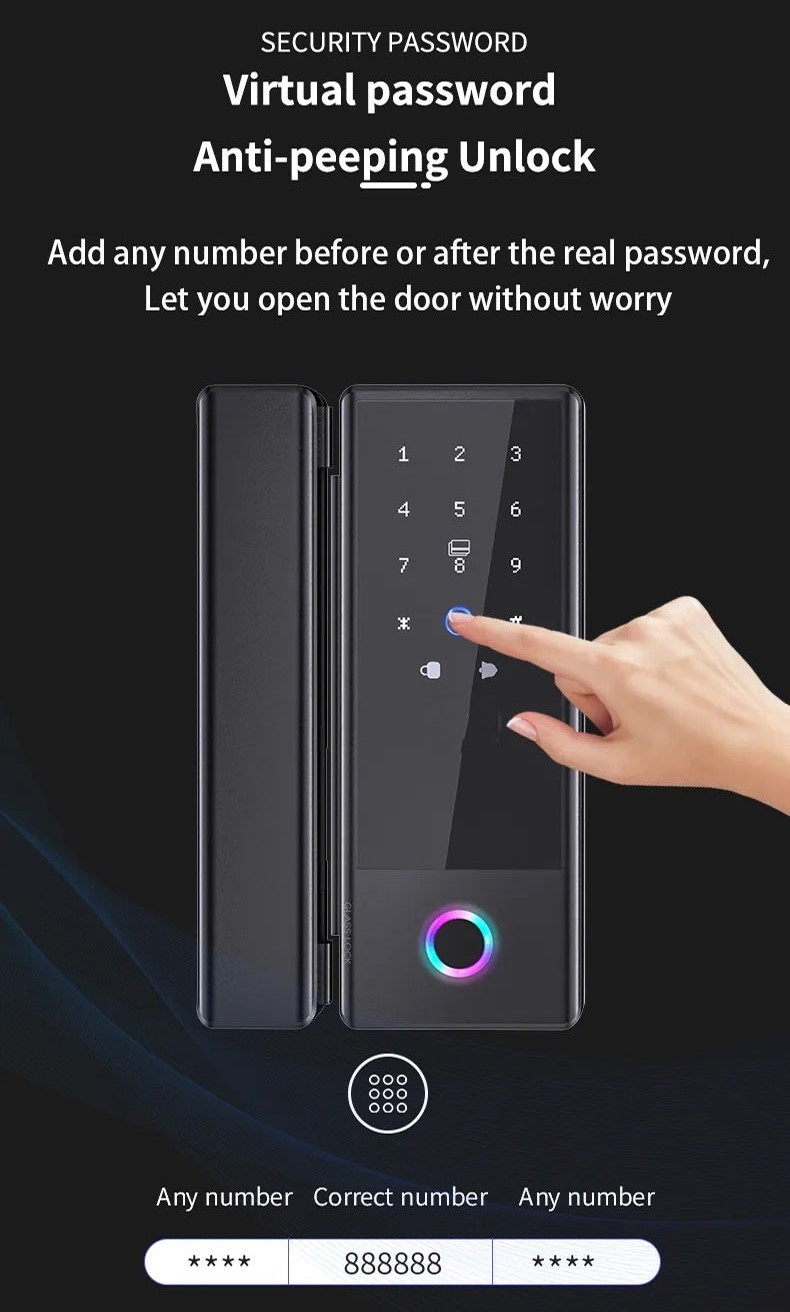

PIN codes assigned in the TTLock app or via the API can have 4 to 12 digits. Codes entered directly from the lock menu have 6 to 12 digits (depending on the lock firmware).
Click “BUY IN SHOP” to open the product in the Space BMS shop. For larger orders and projects, call +48 533 909 533 or use the contact form.
In the “Downloads” tab. If a document you need is missing, we will send it on request.
Downloads
Datasheets and manuals in PDF format. If you need a document in another language, please contact us.

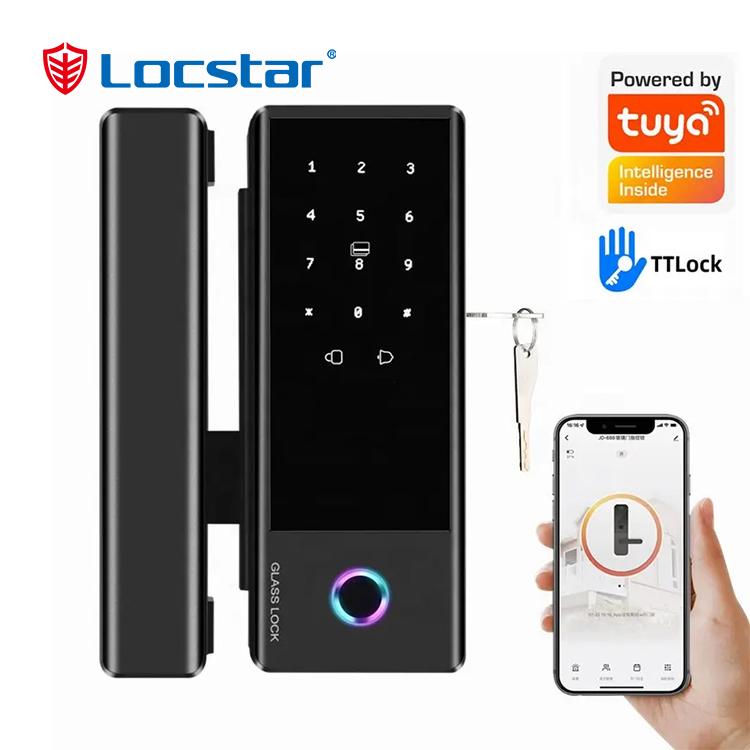

The LS-C83-A works with the TUYA and TTLock platforms. It can be unlocked with a code, card, fingerprint, the mobile app, a physical key or Bluetooth. It has a built-in Bluetooth 4.1 BLE module and is made of high-grade aluminium alloy and ABS. The lock is designed for glass doors.
Product number | LS-C83-A |
Opening methods | App, fingerprint, PIN code, RFID card, mechanical key, Bluetooth
|
Material | Stop aluminum |
Certyfikaty | CE/ROHS
|
Colour | Silver, black |
Warranty | 12 months |
The LS-C83-A wireless smart lock is a dedicated solution for glass doors. It is controlled from a smartphone with the TTLock app. It can be unlocked in five ways: fingerprint, PIN codes, RFID cards, mechanical key or mobile app. The double-latch design lets you use the lock on left- and right-hand doors. The lock is powered by four AA batteries (not included).
The lock itself communicates via Bluetooth when you are within 5 metres. For remote control over the internet, you need the G2 gateway, which can be purchased separately at any time.
Key parameters:
- The lock can be opened wirelessly with the fingerprint reader, PIN code, key, RFID card (13.56 MHz) or mobile app
- Material: aluminium alloy
- Online opening method: TTLock app via Bluetooth, or via the internet through a router

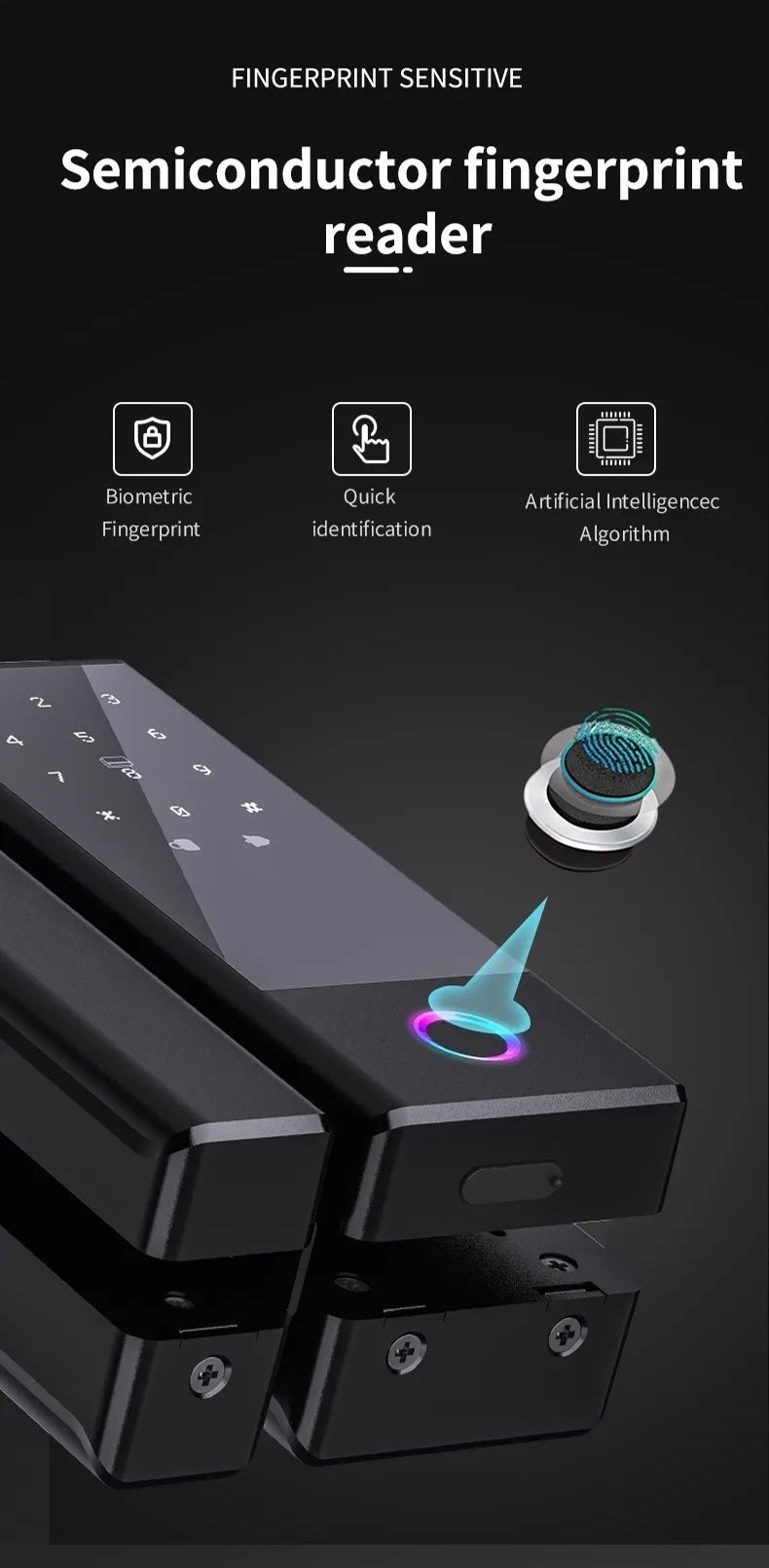

- Rozmiar odcisku palca: FPC 160x160
- Capacity: 100 fingerprints, 150 PIN codes and 200 cards
- Powered by 4 AA batteries (not included)

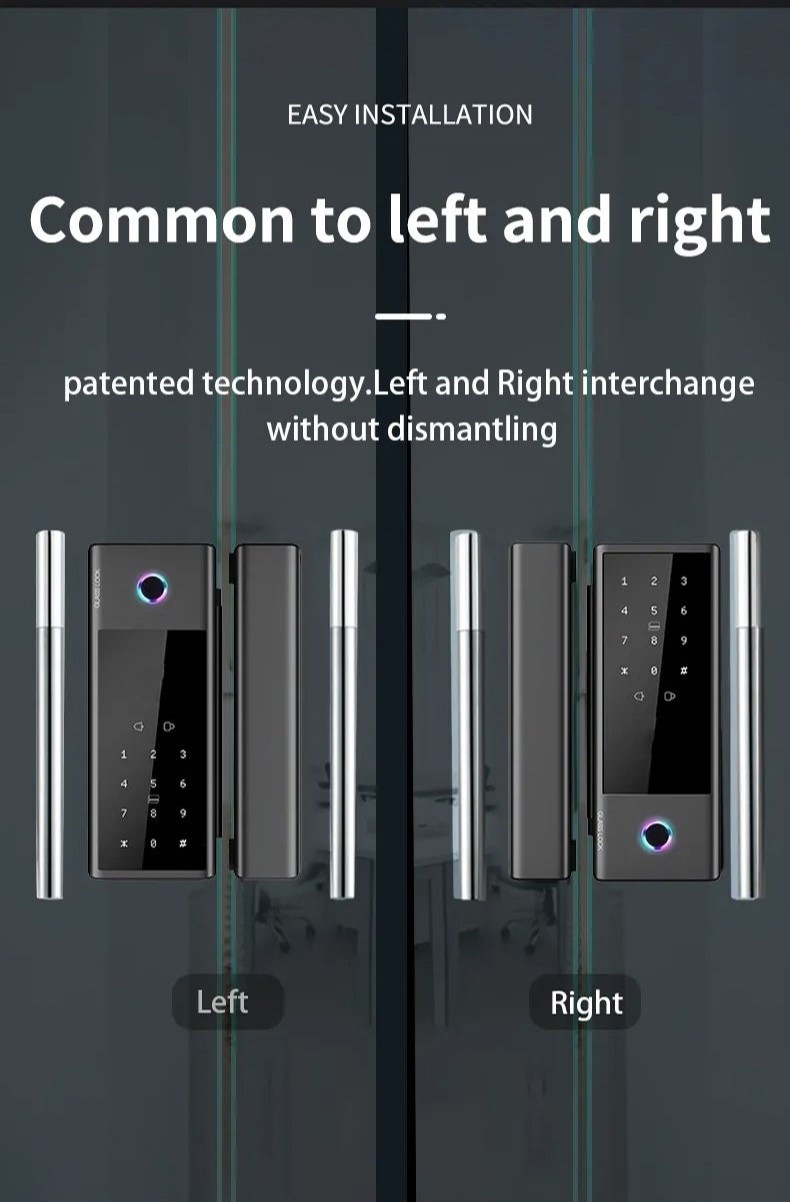

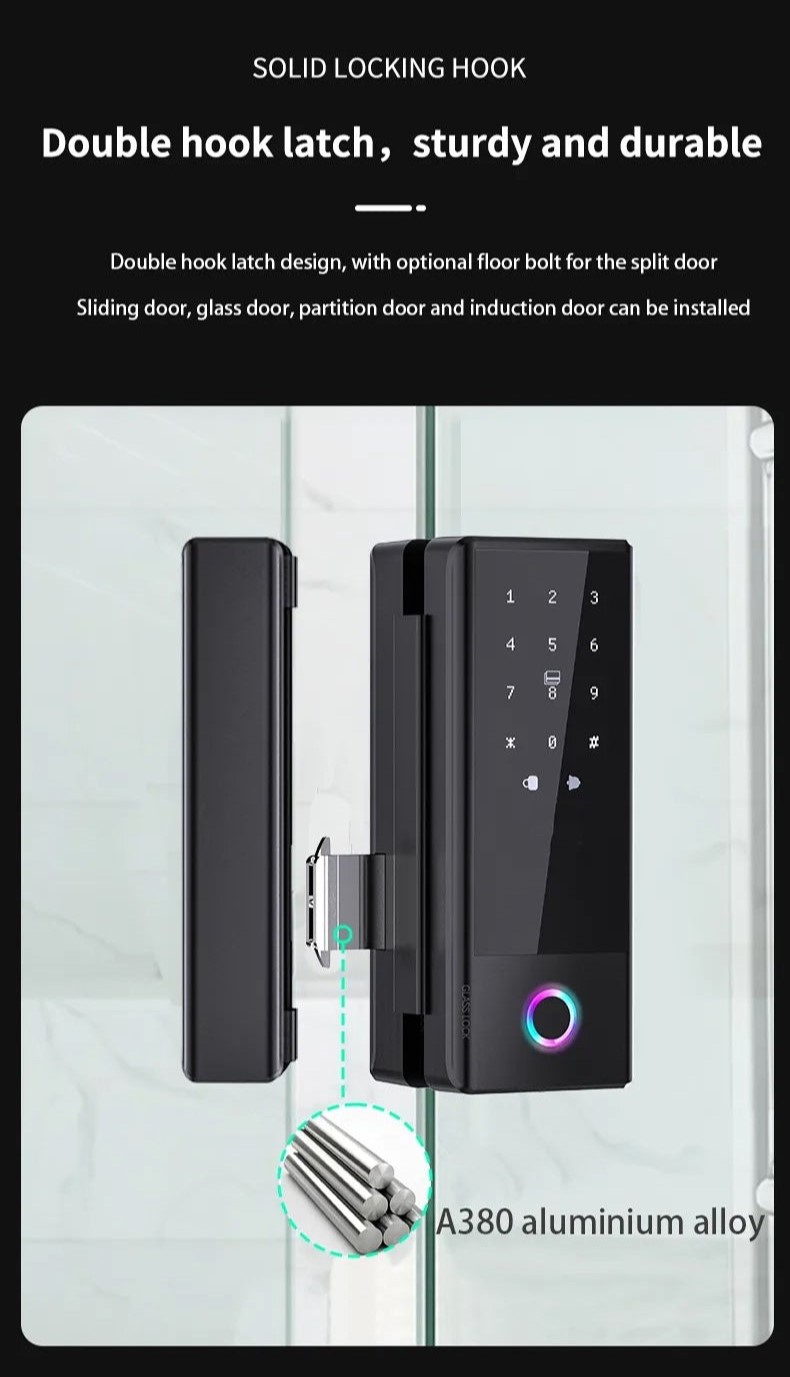

- Two-way latch, reversible opening direction
- Micro-USB port for emergency power
- Protection against unauthorised opening attempts: 5 wrong attempts = 3-minute lockout

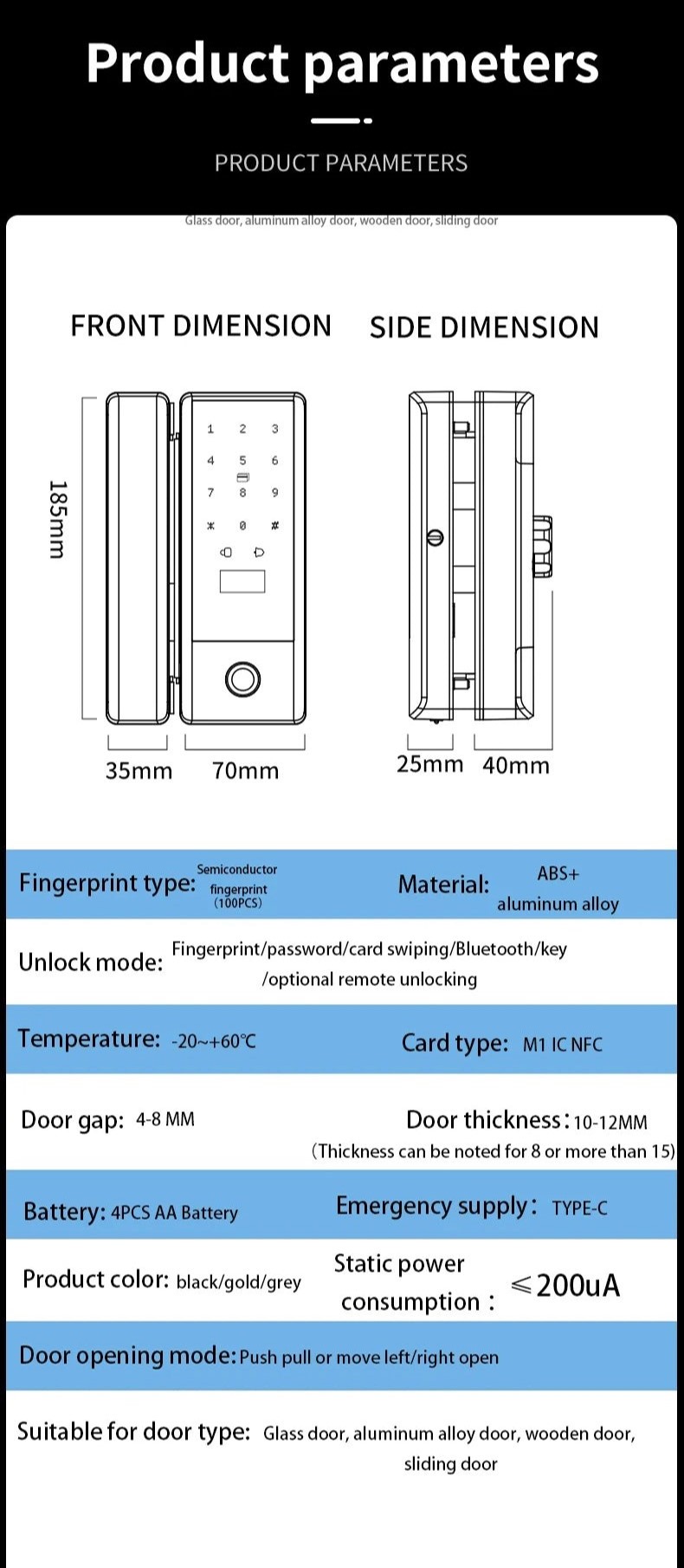

- Dimensions: 185 × 40 × 70 mm
Material | Stop aluminium | |
Typ odcisku palca | FPC 160X160 | |
Power source |
4*AAA
| |
Low voltage warning |
| |
Standby current | 75µA
| |
Operating current |
| |
Operating temperature | -20 - 70 °C
| |
Dimensions | 185 × 40 × 70 mm |
WFingerprint false acceptance rate | <0.001% |
Fingerprint false rejection rate | <1.0% |
Available colours | Silver, black |
Max. number of fingerprints | 100 |
Max. number of PIN codes | 150 |
Max. number of RFID cards | 200 |
Gniazdo/wpust:
