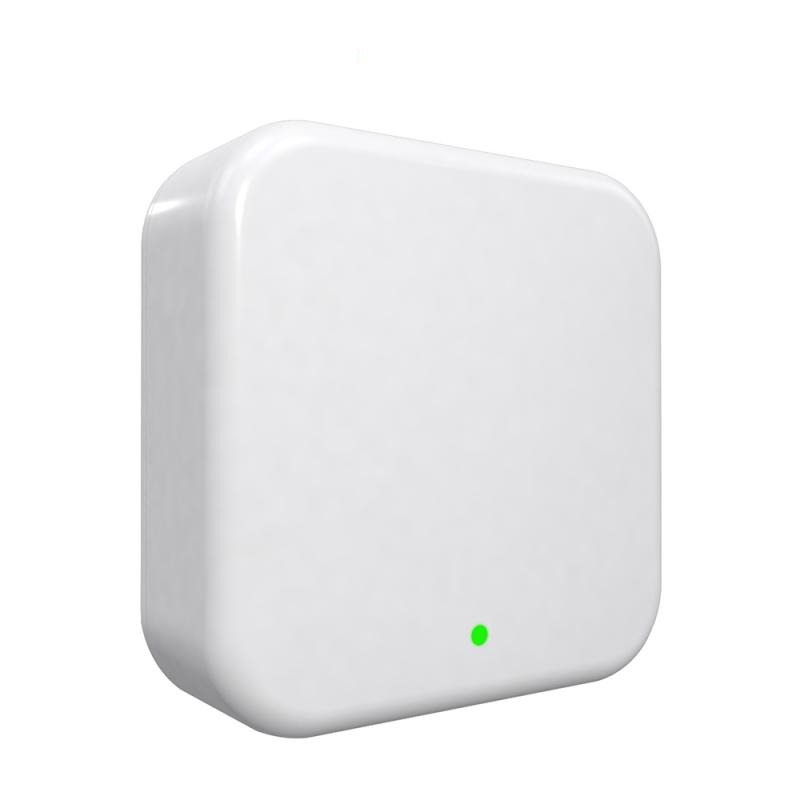

TTLock gateway
Product number | TTLock gateway |
Dimensions | 70 × 70 × 26 mm
|
Network | WiFi 2.4G
|
Colour | White |
Warranty | 12 months |
Wi-Fi gateway for wireless communication with TTLock-compatible devices and connection to an external server

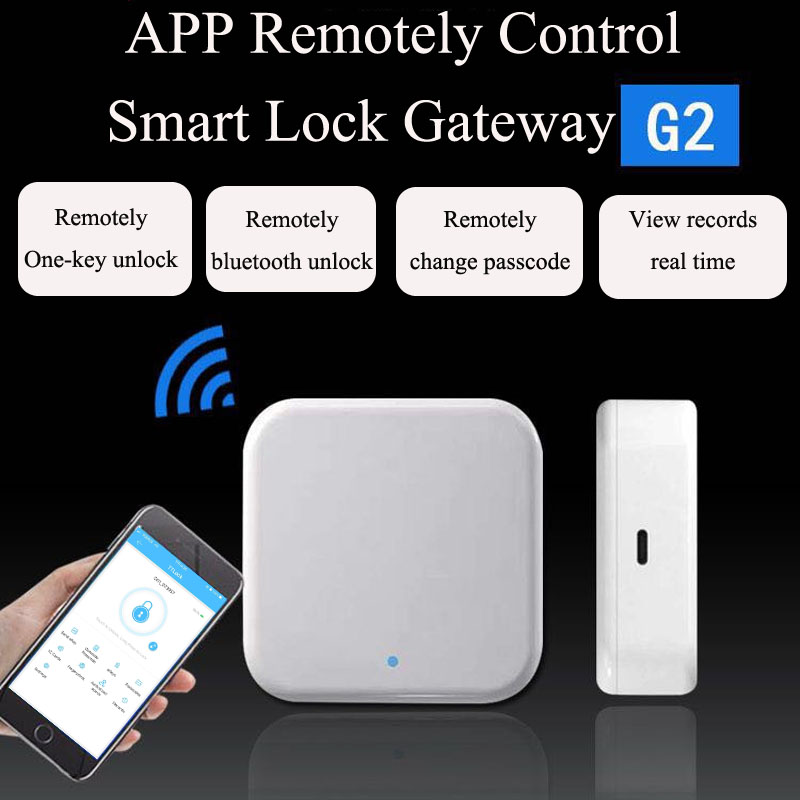

Our locks are usually controlled via Bluetooth, which uses much less energy but only works within 5 metres of the lock. With our G2 Gateway module, however, you can control your locks over the internet from anywhere in the world.
A single G2 module can control multiple locks within up to 5 metres, depending on obstacles. The module is powered by a 5 V USB-C charger (charger and cable included).
Pairing the G2 module with the TTLock app is easy (instructions below).

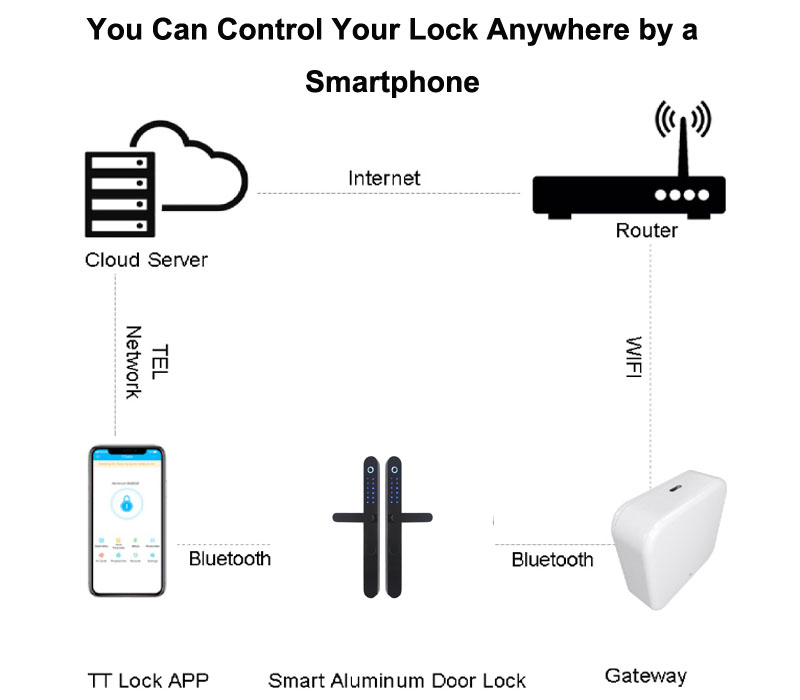

The module connects to your local Wi-Fi network and acts as a data bridge between your phone and the lock. For a reliable connection, keep suitable distances between all devices (Wi-Fi – module – lock). In open space, the module can reach a lock up to 5 metres away.
Bluetooth locks have longer battery life than Wi-Fi locks. The module is powered by a standard USB-C power adapter (cable and charger included).
Instrukcja parowania:
- Make sure that:
- The lock is installed and switched on
- The G2 module is switched off
- Wi-Fi, Bluetooth and location are enabled on your phone
- You know your Wi-Fi password or your phone is connected to the local Wi-Fi network
- In the TTLock app menu, select “Wi-Fi Gateway” and tap “+”
- In the pop-up window, select the G2 (Wi-Fi) model.
- Switch on the G2 module
- The G2 module indicator should flash rapidly red and blue. This means the module is in pairing mode. It stays in pairing mode for about 1 minute.
- Tap “Next” in the TTLock app
- Your connected G2 module should appear on the screen; select it.
- Select or enter the Wi-Fi network you want to connect the G2 module to

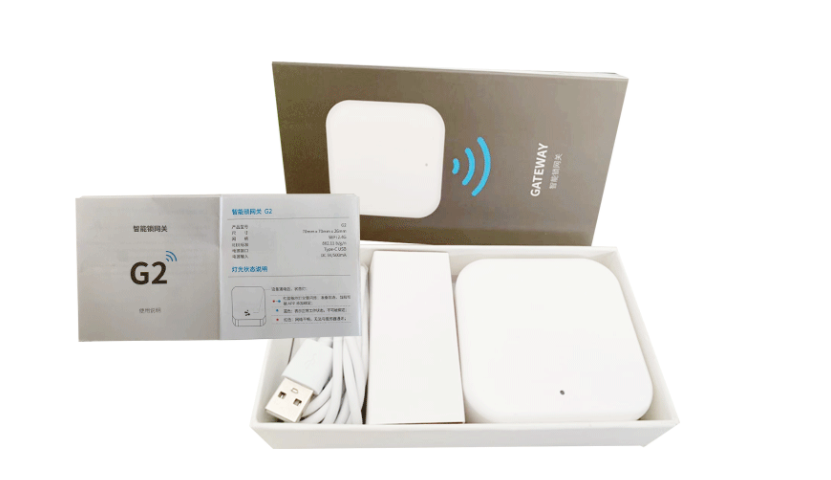

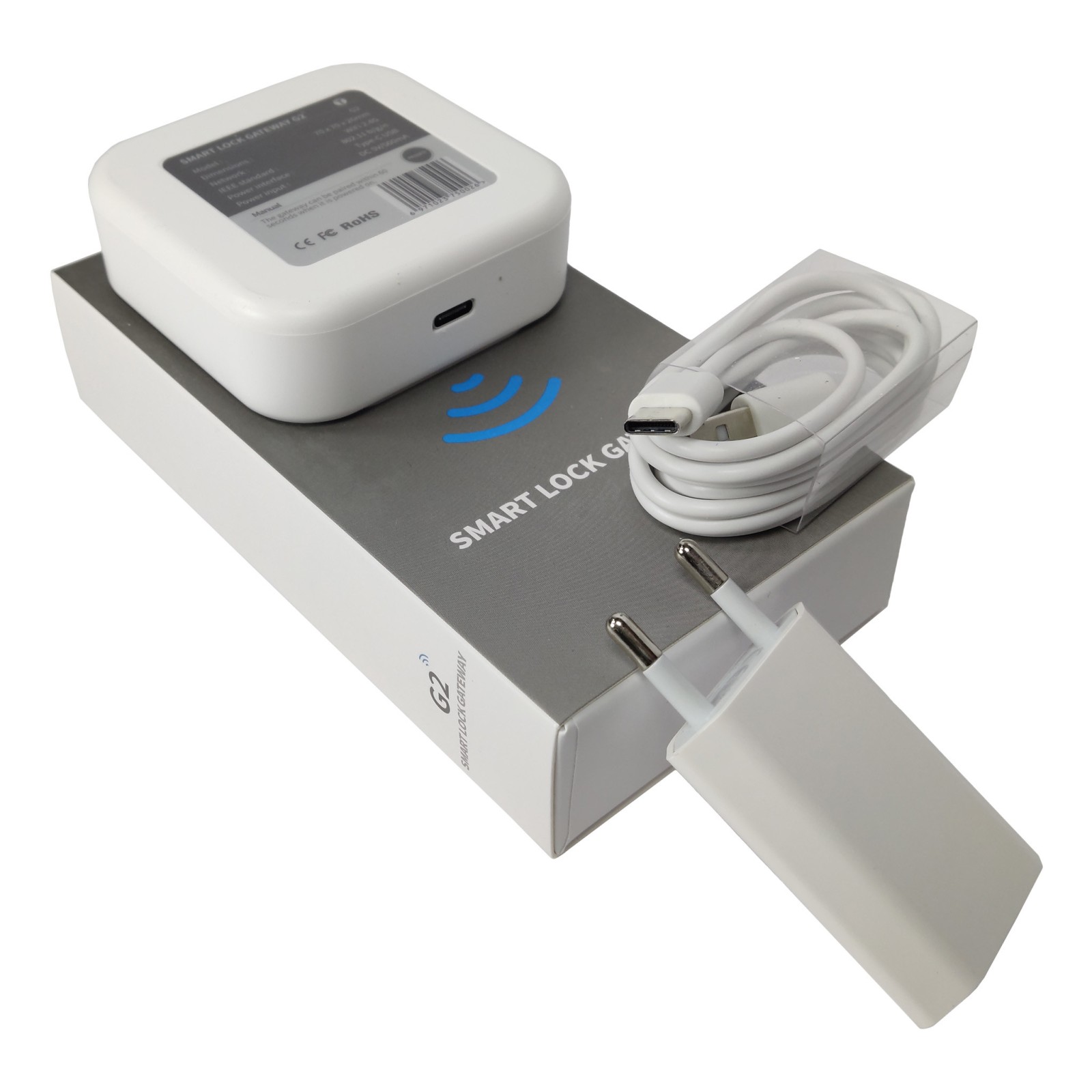

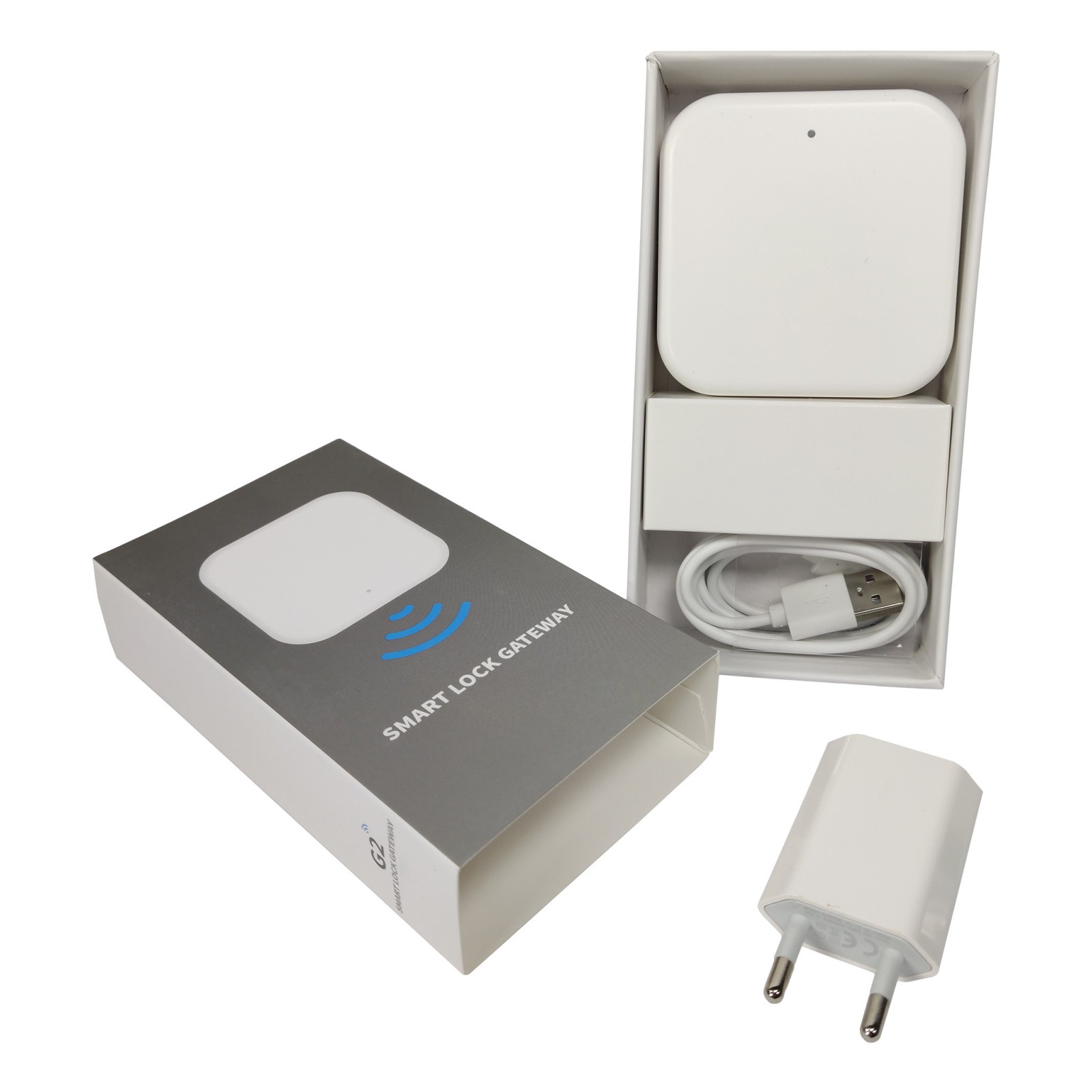

Package contents:
- Brama G2
- 1.2 m USB-C cable
- 5 V 1 A EU charger
Funkcja | Wi-Fi gateway | |
Network | WiFi 2.4G
| |
IEEE standard |
| |
Supply voltage | DC 5 V, 500 mA
| |

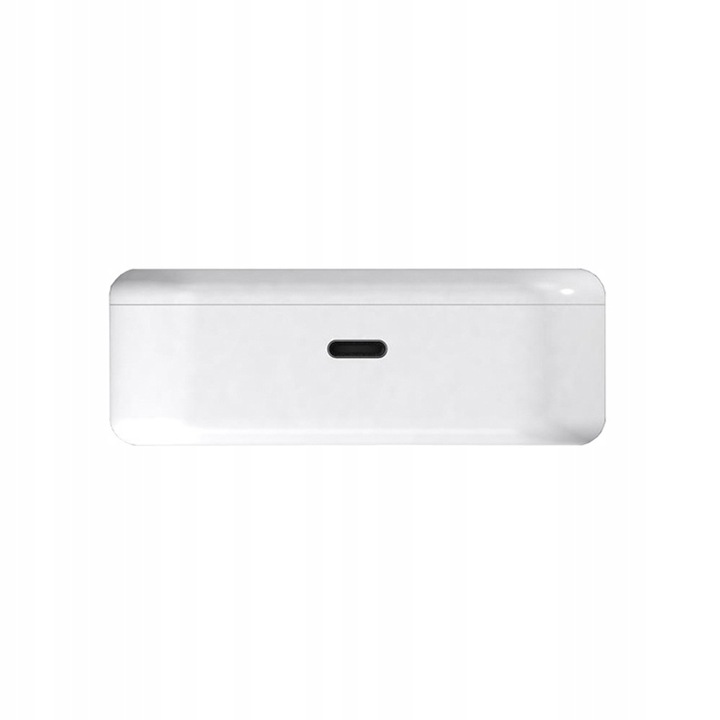

Power interface | USB-C | |
Dimensions
| 70 × 70 × 26 mm
|
