Wall Terminals
Space Pad Pro Keypad
Access terminal with face recognition and palm scan, supplied with an indoor panel. For walls or metal doors, screwed together from the inside.
Two panels, one system
Space Pad Pro is an access control terminal made of two panels. The outdoor panel identifies the user by face, palm and vein scan, fingerprint, card or PIN code. The indoor panel, on the secure side, controls the door: an electromotive lock, an electric strike, a bolt or a drive that closes the door by itself.
The same kit can be mounted in two ways: as a terminal in the wall next to the door or directly in the leaf of a metal door. In both cases the panels are screwed together from the inside, so there is nothing to unscrew from outside.
Tempered glass, anodised aluminium, galvanised steel. For entrance doors of flats and houses, offices, server rooms and warehouses.
Key features
Face, also at night
Two cameras with IR illumination recognise faces, also after dark.
Palm and vein scan
Built in as standard: hold your hand over the reader, no touching needed.
Finger, card, code, QR
Fingerprint reader, MIFARE cards, backlit keypad; the camera reads QR codes.
Lidar, OLED and voice
Lidar wakes the device when someone approaches. Under-glass display and voice prompts.
Mounted from the inside
The panels are screwed through the wall or door leaf with 2 M5 screws from the inside.
Indoor panel with ports
Relays, radio, open/close buttons; ports for the lock, door drive and sensors.
Access for visitors and staff
QR entry via WhatsApp
A visitor is coming to a 3:00 pm meeting. In two seconds, an employee sends them a QR code on WhatsApp, valid for 2 hours. The visitor scans it at the entrance and in the lift: no reception desk, no card, no app.
A new employee has access from day one, and when someone leaves, the administrator switches their access off with one click.
- 1
Write
The administrator adds a person by their WhatsApp number. They message the building’s WhatsApp Business number and pick an option from the menu.
- 2
Get your code
“Entry code” is a personal QR code. “Guest code” gets a start time and validity, e.g. 120 minutes, and is forwarded to the visitor on WhatsApp.
- 3
Scan
Scan the code at the lock or terminal. No app to install, no card.
Works via Space Engine with:
- Space Lock MAX
- Space Pad Pro
- Space Pad BIO (QR reader version)
Coming soon: a version for hotels and rentals, including long-term stays.
WhatsApp messages are handled by the WhatsApp Business operator; the feature is optional and can be switched off in fully on-premises deployments.
New access methods
Palm and vein scan
Hold your hand over the reader, no touching needed. The sensor reads the unique pattern of veins under the skin and checks that the hand is alive, so the method is very hard to fake with a photo or a copy. Recognition is fast, even with many users, and the system stores an encrypted template, not an image of the hand. Hygienic and convenient wherever security matters. Built in as standard in current SPACE locks and Pads with the camera module.
BLE beacon optional, on order
Hands-free automatic opening. The user carries a wristband or clip with a BLE beacon. When it comes within the set distance of the lock or Pad, the device opens the passage by itself, according to the assigned permissions and schedule, and every opening is logged. Ideal for autonomous devices such as robots, AGVs and vehicles that need the right to pass or drive through. Optional, on order: requires the BLE module or the app function.
Specifications
General
| Design | kit: outdoor panel (identification) + indoor panel (door control) |
|---|---|
| Mounting | flush: in the wall next to the door or in the leaf of a metal door; panels screwed together from the inside with 2 M5 screws |
| Warranty | 12 months; Space Care 24 or 36 months |

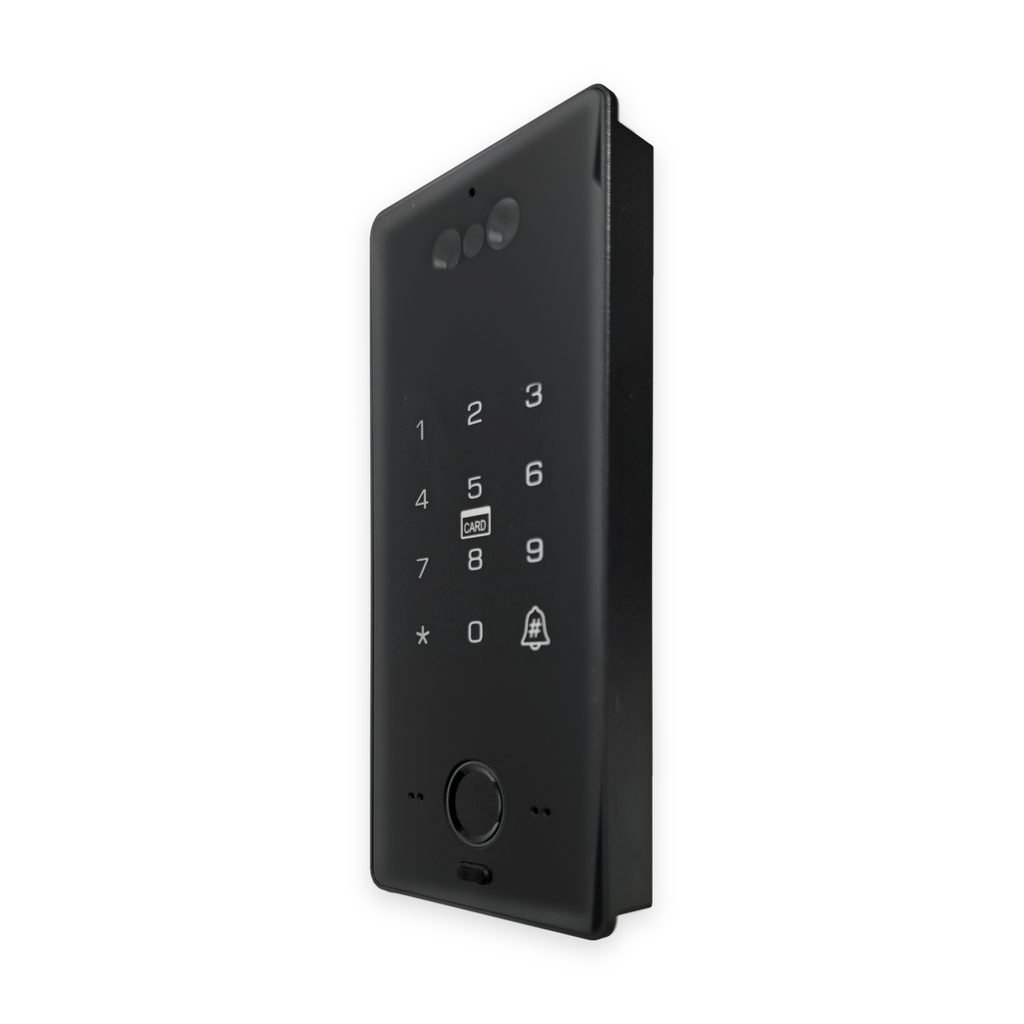

Outdoor panel
| Dimensions (H × W × D) | 165 × 75 × 19 mm |
|---|---|
| Mounting cut-out | 159 × 69 mm (3 mm smaller than the front on each side) |
| Identification | face, palm and vein scan, fingerprint, MIFARE card, PIN code, QR code |
| Cameras | two cameras with IR illumination for face recognition |
| Night operation | yes, IR illumination |
| Approach detection | lidar |
| Keypad | touch, white backlight |
| Display | OLED under glass: status, date and time, menu |
| Prompts | voice (speaker) |
| Menu and prompt language | Polish; other language versions depending on the market |
| Cards | MIFARE (as in Space Lock locks) |
| QR code | yes, read by the camera |
| Optional, on order | BLE beacon for automatic opening (BLE module or app function) |
| Doorbell | yes, doorbell button on the keypad |
| Front / housing | tempered glass / anodised aluminium, black |
| Connectors | harness connector to the indoor panel, USB-C for a smart screen |

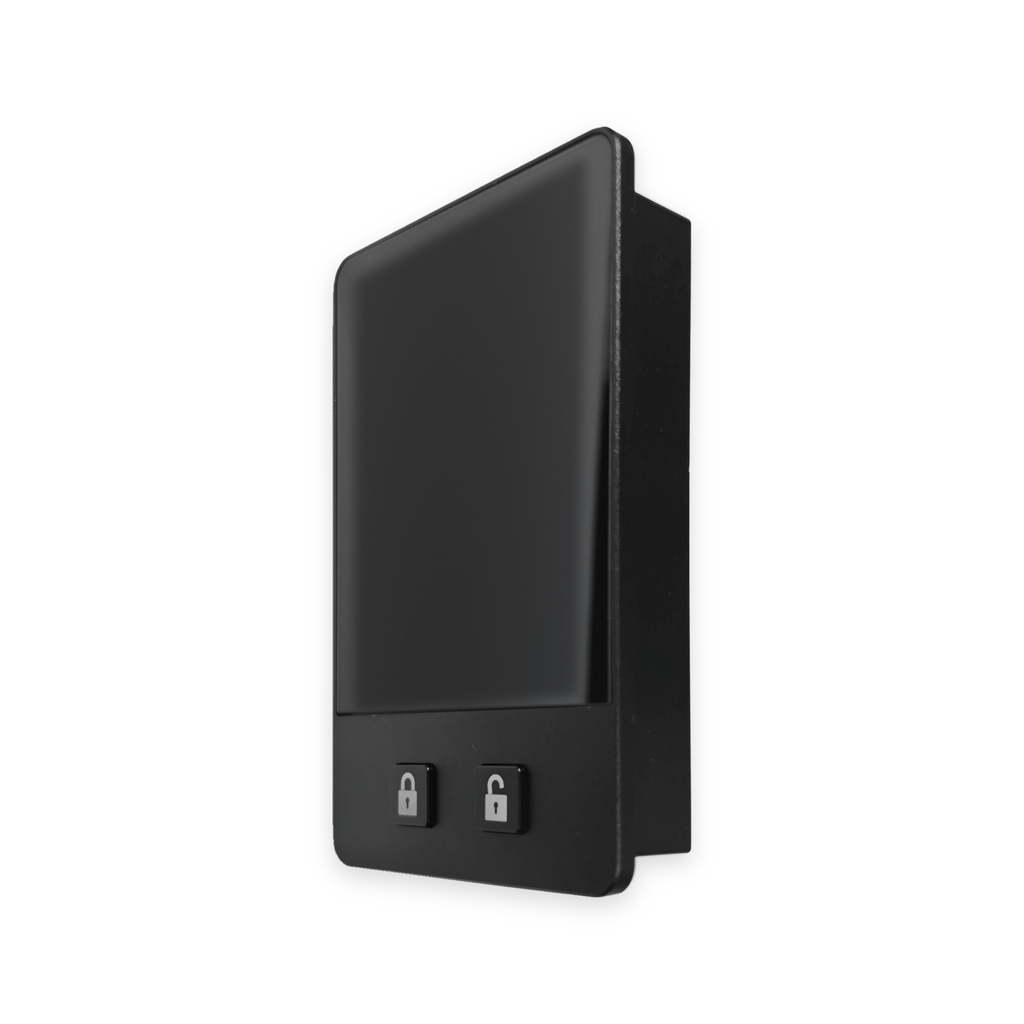

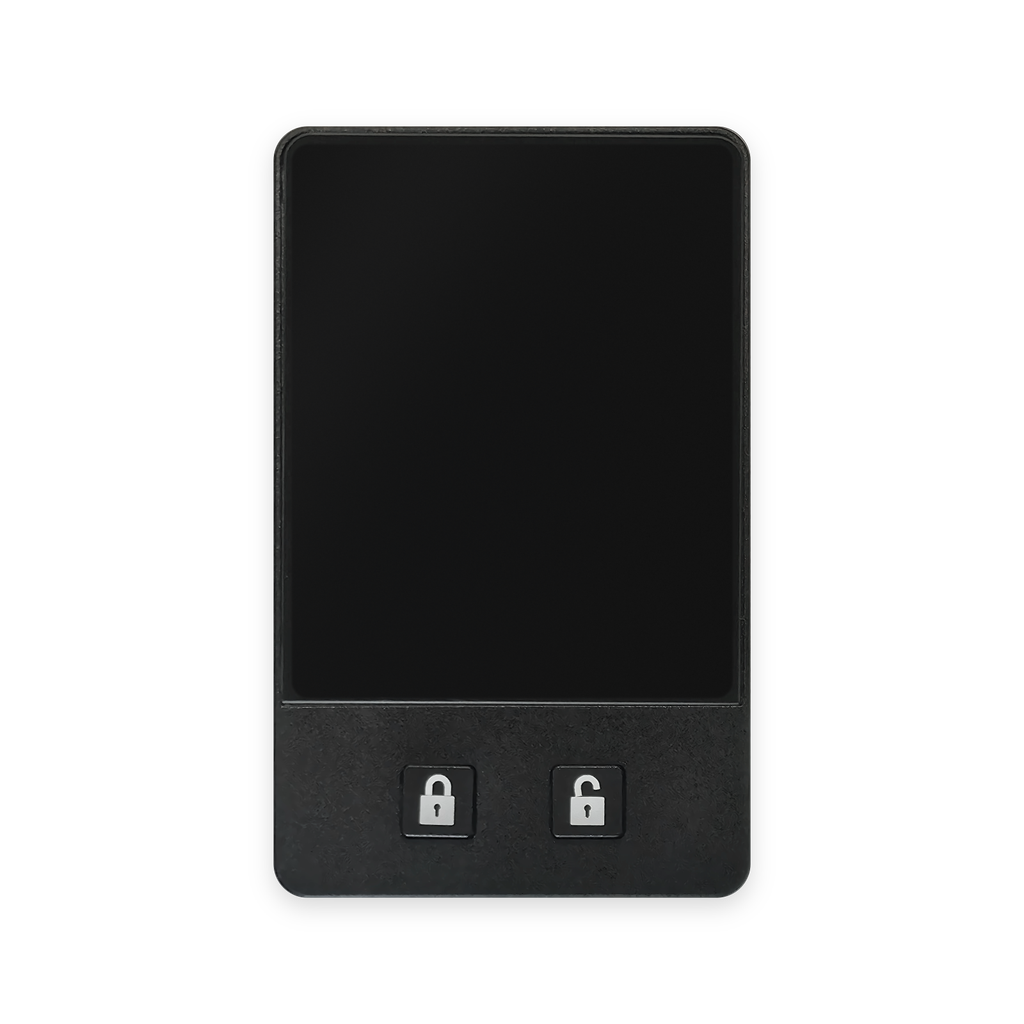

Indoor panel
| Dimensions (W × H × D) | 63 × 105 × 23 mm |
|---|---|
| Buttons | open / close |
| Electronics | relays, Z-Wave radio module |
| Ports | electromotive mortise lock, door drive (operator / door closer), sensors (e.g. reed contact), smart screen, outdoor panel |
| Power supply | 24 V DC |
| Backup power | 8.4 V battery connector (battery not included) |
| Front / housing / back plate | tempered glass / anodised aluminium, black / galvanised steel |
Management and connectivity
| Local configuration | administrator mode on the device: administrators, users, system settings, statistics and event log |
|---|---|
| Connectivity | Z-Wave (Space system, like Space Lock locks) |
| Users | up to 230: 9 administrators + 221 regular |
Kit contents
- outdoor panel
- indoor panel
- cable harnesses to connect the panels
- USB-C cable
- 2 M5 screws
Optional accessories
- Space electromotive mortise lock – for mounting in the door leaf; one model has a battery compartment for backup power
- Door drive (operator / door closer) – closes the door automatically
- 8.4 V battery – backup power
- Door contact (wired reed contact) – shows whether the door is closed
Specifications
| Device type | Wall terminals and keypads |
| Brand | SPACE |
| Connectivity | Z-Wave 800 |
| Opening method | RFID card, PIN code, QR code, Mobile app |
| Suitable for | Hotels and apartments, Offices and commercial buildings, Residential and rental |
