Manufacturer: Mingyang
Solar PV & BIPV · Façades and spandrels

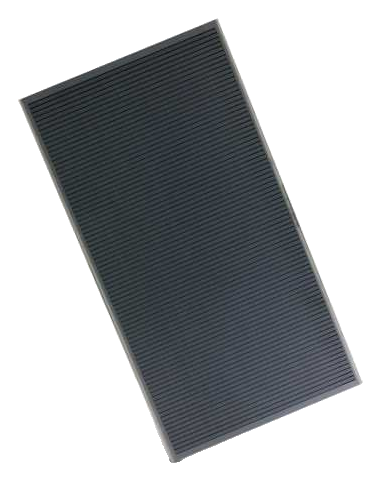

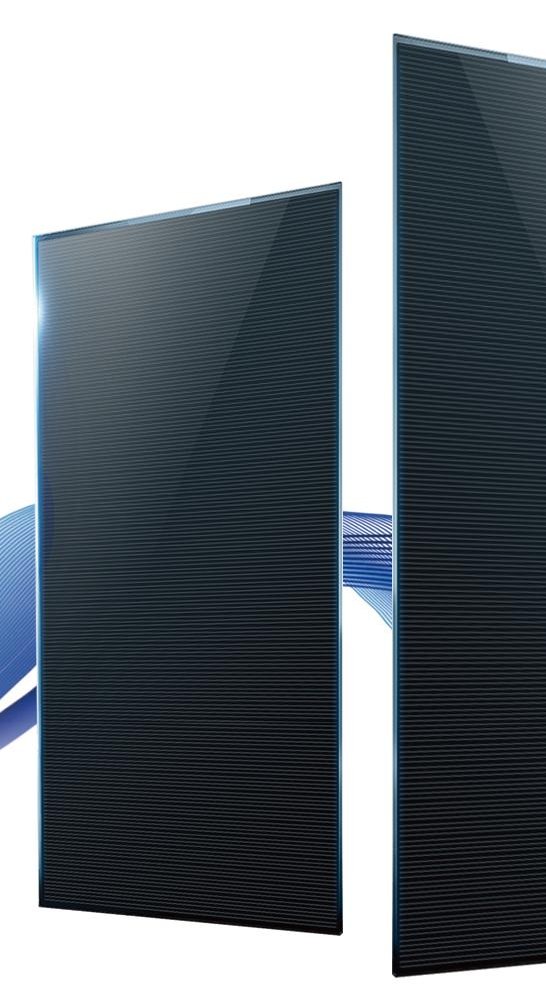

Mingyang BIPV Standard Module MY-JL-B5 / B6 / B8 (CdTe glass-glass)
A frameless, opaque CdTe thin-film glass module of 1200 × 600 mm that replaces cladding or spandrel glass and generates up to 110 W.
Product code: SPC-PV-MY-STD
Use case
On an office building, the opaque spandrel panels between the floors are made of Mingyang BIPV glass instead of ordinary enamelled glass.
From the street they read as one uniform dark façade, and the energy they generate supplies the building’s common areas and EV chargers.
How it works
Building material and power plant
The module is a laminated glass panel that replaces a conventional building material and generates electricity at the same time.
Three glass build-ups
5 + 3.2 + 5 mm, 6 + 3.2 + 6 mm or 8 + 3.2 + 8 mm, chosen to suit the façade structure and loads.
Stable output
Temperature coefficient of power −0.29 %/°C, 2.0% degradation in the first year and 0.5% per year thereafter.
Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Mingyang |
| Technology | Cadmium telluride (CdTe) thin film, frameless glass-glass |
| Models | MY-JL-B5 / MY-JL-B6 / MY-JL-B8 |
| Maximum power (STC) | 110 W / 110 W / 105 W (±5%) |
| Vmpp / Impp | 101.0 V / 1.10 A · 101.0 V / 1.10 A · 100.7 V / 1.07 A |
| Voc / Isc | 122.8 V / 1.19 A · 122.8 V / 1.19 A · 122.8 V / 1.15 A |
| Size | 1200 × 600 × 16.2 / 18.2 / 22.2 mm |
| Weight | 29 / 33 / 40 kg |
| Area | 0.72 m² |
| Glass build-up | 5 + 3.2 + 5 / 6 + 3.2 + 6 / 8 + 3.2 + 8 mm |
| Cable, connector, junction box | 2.5 mm², 650 ± 10 mm · MC4 · IP67 |
| Operating temperature | −40 °C to +85 °C |
| Temperature coefficients | Pmax −0.29 %/°C · Voc −0.28 %/°C · Isc +0.04 %/°C |
| Max. system voltage, fuse rating | DC 1000 V (IEC) · 6 A |
| Application class | A2 |
| Wind and snow load | 6000 Pa (IEC) |
| Packing | 50 modules / pallet (700 kg) |
| Warranty | 10-year product warranty, 25-year performance warranty (more than 85% power after 25 years; 2.0% in year 1, then 0.5% per year) |
| Certificates (manufacturer documents) | VDE marks approval No. 40049441 (EN IEC 61730-1/-2:2018; the product also fulfils IEC 61215:2016), thin-film terrestrial PV modules · ISO 9001, ISO 14001 and ISO 45001 (SGS) for CdTe module manufacture |
Manufacturer: Mingyang. Offered and supported in Poland by Space BMS sp. z o.o. Enquiries: +48 533 909 533 or the contact form on this website.
Mingyang projects are prepared together with the manufacturer’s BIPV engineering team.
All technical data are manufacturer declarations. Specifications may change without notice. Edition 10.2026.
How we work with you
- Site visit and roof or car-park survey.
- Yield estimate and system layout for your building.
- Structural and grid-connection check with your designer.
- Installation by qualified partners and commissioning.
Detailed technical documentation and drawings are available on request.
