EV Charging · DC

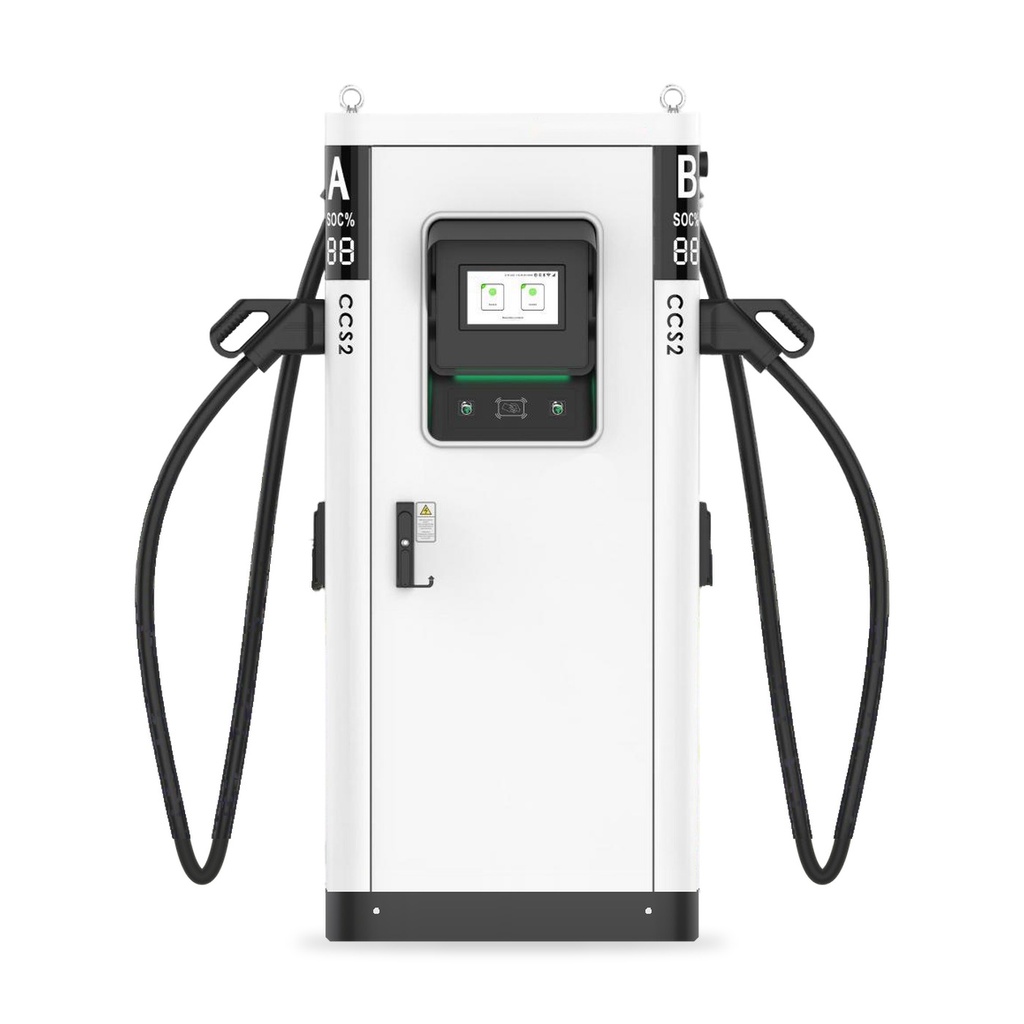

SPACE EV DC 60 Charger
A 60 kW DC charging station with two CCS2 cables for retail parks, office car parks and hotel forecourts.
Product code: SPC-EV-DC60
Use case
A retail park wants drivers to charge while they shop for 30–60 minutes.
The 60 kW station has two CCS2 cables and shares its power dynamically, so two cars can charge at the same time.
How it works
Two cars, one station
Two CCS2 outputs with dynamic power sharing in 30 kW steps.
High efficiency
Peak efficiency of at least 95% and a power factor of at least 0.99.
Ready for payments
Optional card-payment terminal and cable management system.
Specifications
| Parameter | Value |
|---|---|
| Rated power | 60 kW |
| Connectors | 2 × CCS2, 4.5 m cables |
| DC output | 150–1000 V, up to 200 A; constant power 300–1000 V |
| Power sharing | Dynamic, 30 kW minimum step |
| AC input | 400 V, 97 A rated (108 A max.) |
| Communication protocol | OCPP 1.6J, OCPP 2.0.1 |
| Vehicle communication | ISO 15118, ISO 15118-2, DIN 70121 |
| User authentication | Mobile app, RFID, QR code, MAC autocharge, Plug & Charge; card-payment terminal optional |
| Connectivity | Ethernet (LAN), 4G, Wi-Fi |
| Grid connection | 400 V AC ± 10%, 3P + N + PE, TN-S / TN-C-S / TT |
| Peak efficiency | ≥ 95% |
| Power factor (full load) | ≥ 0.99 |
| Display | 7" touchscreen |
| Ingress / impact protection | IP54 / IK10 (screen IK08) |
| Operating temperature | −25 to +50 °C (derating 50–65 °C) |
| Cooling | Forced air |
| Dimensions (W × D × H) | 700 × 400 × 1550 mm |
| Weight | 195 kg |
| Compliance (manufacturer declaration) | CE, UKCA, RCM, RoHS, REACH, EU RED cybersecurity |
All technical data are manufacturer declarations. Specifications may change without notice. Edition 10.2026.
How we work with you
- Check of available power and cable routes on site.
- Choice of chargers and load management for your car park.
- Configuration of access: RFID cards, app or payment terminal.
- Installation, commissioning and connection to an OCPP back office.
Detailed technical documentation and drawings are available on request.
Technical documentation
Specifications
| Device type | EV chargers |
| Brand | SPACE |
| Connectivity | Wi-Fi, Ethernet (LAN), Cellular |
| Suitable for | Offices and commercial buildings, Retail and food service, Industry and infrastructure |
| Charging type | DC (fast charging) |
