WizarPOS Ticket Validator
Ticket, card or phone at the entrance: transport, events, pools and paid zones.

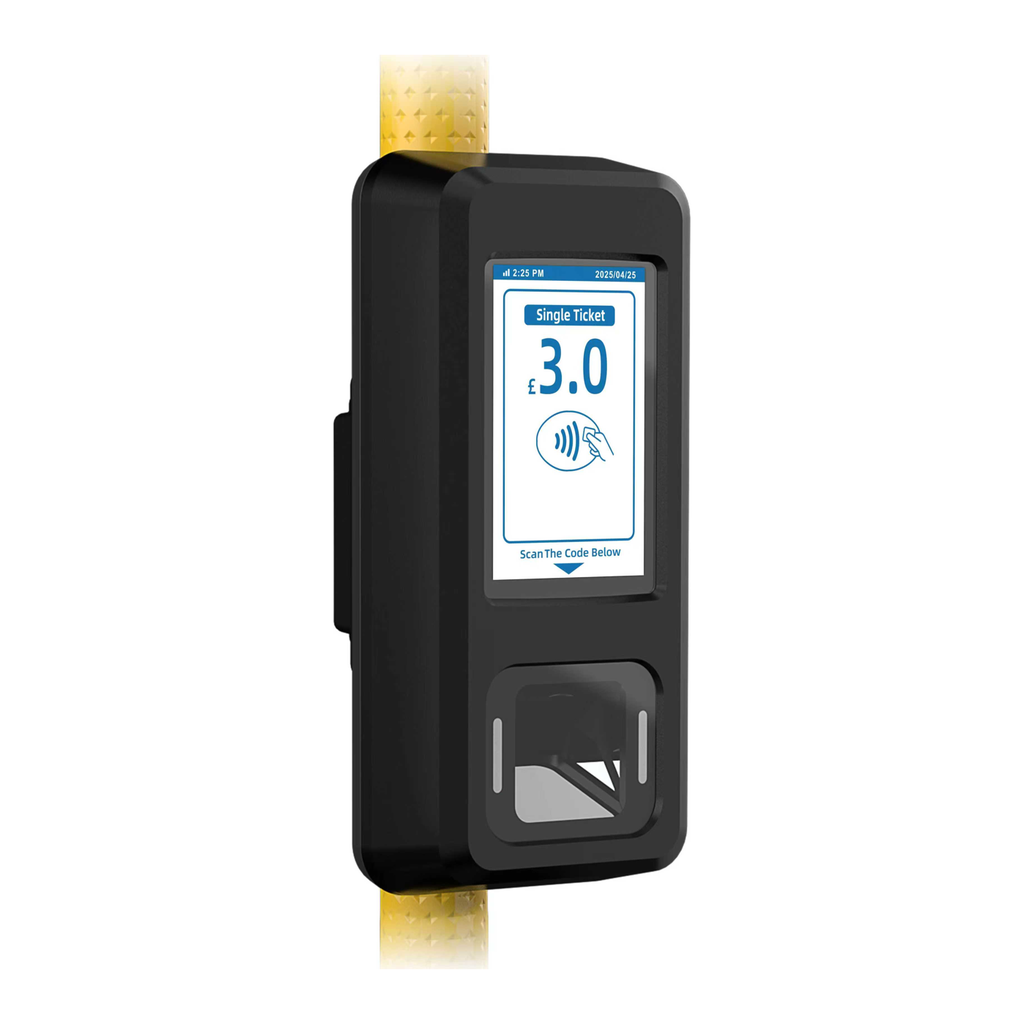

The Ticket Validator mounts on a grab pole in a bus, at a gate or at the entrance to a paid zone. Passengers and guests tap a payment card or phone, or scan a QR ticket, and the validator confirms the journey or entry. A 24 V or PoE supply, SAM slots for transit cards and an optional backup battery suit both vehicles and venues.
Where it fits
Public transport
Pay for the ride with a card, phone or QR ticket.
Events and attractions
Ticket checks at concerts, trade shows and museums.
Hotel leisure
Entry to the spa, pool or gym with a ticket or QR code.
Key features
Contactless payment
On-screen tap for cards and phones.
QR scanner
1D and 2D tickets from a phone or on paper.
PoE or 24 V
Power over Ethernet, or a 24 V supply in vehicles.
SAM slots
SIM + SAM or 2 × SAM for transit cards and ticketing systems.
Tough
IK10 and an operating range of −20 to +60 °C.
Two-way mounting
On a pole or a wall, with or without the stand.
Technical specification
| Platform | |
|---|---|
| Operating system | Secure Android 7 |
| Processor | Qualcomm + secure chip |
| Memory | 1 GB RAM + 8 GB Flash, or 2 GB RAM + 16 GB Flash |
| Display | 4" colour multi-touch, 480 × 800 |
| Card slots | 1 × SIM + 1 × SAM, or 2 × SAM |
| Payments | |
| Contactless (NFC) | ISO 14443 A/B, MIFARE, Sony FeliCa |
| Scanner | 1D and 2D codes, QR |
| Certifications (manufacturer’s declaration) | PCI PTS, EMV L1 and L2, EMV Contactless L1, PayPass, payWave, ExpressPay, D-PAS, Mastercard TQM, SRED, CE, FCC, RoHS |
| Connectivity and ports | |
| Connectivity | 2G/3G/4G LTE, Wi-Fi 2.4 GHz, Bluetooth 4.0, eSIM (optional) |
| Ports | RS232/RS485, Ethernet (PoE), USB-A, DC jack, external antenna (optional) |
| Positioning | GPS, A-GPS |
| Power and build | |
| Power | 24 V DC or PoE |
| Battery | backup (optional): up to 30 minutes |
| Enclosure | IK10 impact protection |
| Operating temperature | −20 to +60 °C |
| Dimensions (L × W × H) | 212 × 95 × 87.5 mm with stand; 212 × 95 × 45.5 mm without |
| Weight | 205 g |
Payments and integration
Payment types
credit, debit, prepaid and closed-loop cards; chip, contactless, e-wallets, barcodes and QR codes
Management
remote terminal management (TMS): configuration, updates and apps without a site visit
Integration
semi-integration with your POS or PMS via SDK and API, or an all-in-one app running on the terminal (Android)
Accepts Visa and Mastercard cards (contactless) and mobile wallets – subject to the acquirer.
Certifications listed in the specification are as declared by the manufacturer and apply to specific models and hardware revisions. Certificate numbers are available on request.
Technical documentation
All prices exclude VAT (23%). Terminal activation and the payment application licence with TMS are charged separately.
WizarPOS distribution in Poland: Space BMS sp. z o.o., ul. Zbożowa 3/6, 30-002 Kraków, Poland · +48 533 909 533 · www.spacebms.com
