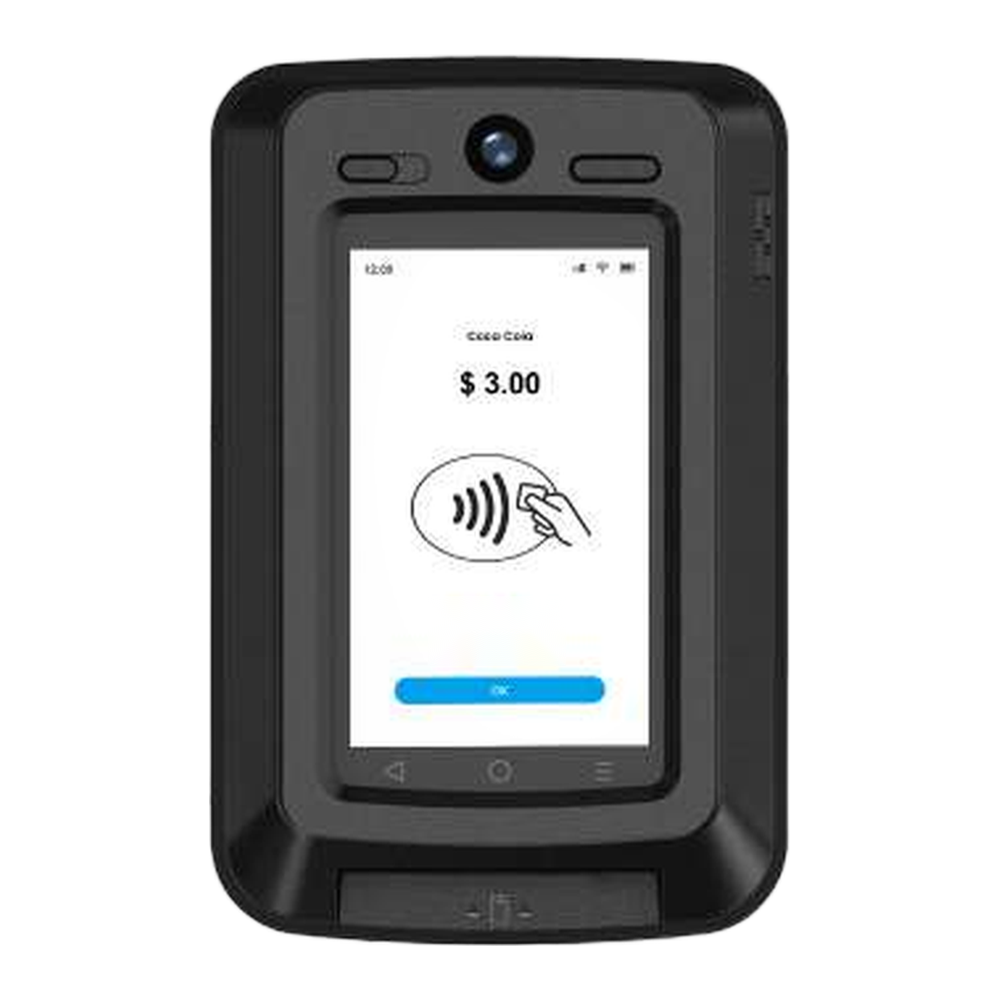

WizarPOS Q3V Unattended Payment Terminal
MDB Master and Slave with a 24 V supply: built for DC chargers, parking meters and vending.
The Q3V is an unattended payment terminal with MDB Master and Slave, pulse and RS232 interfaces, so it can either drive a machine or work alongside its controller. It is a strong fit for DC chargers, parking meters, vending machines and kiosks. The outdoor version has an IP65, IK10 enclosure; the indoor version adds a magnetic stripe reader. An expansion module adds Ethernet and USB-A.
Where it fits
DC chargers
Card payments for rapid charging, meeting ad hoc payment requirements.
Parking and barriers
Pay for parking at entry, exit or the pay station.
Vending
With MDB Master, the terminal can run the sale itself.
Key features
MDB Master and Slave
Plus pulse and RS232 for every type of machine.
Two versions
Outdoor with IP65 and IK10, or indoor with a magnetic stripe reader.
Power
24 V DC or from the MDB bus.
Expansion module
Ethernet and USB-A (optional, uses the USB-C port).
4" display
480 × 800 pixels with 1D and 2D code scanning.
Pre-authorisation
Hold an amount before the service and settle afterwards (per manufacturer).
Technical specification
| Platform | |
|---|---|
| Operating system | Secure Android 14 |
| Processor | Qualcomm Quad-Core 2.0 GHz |
| Memory | 2 GB RAM + 32 GB Flash |
| Display | 4" colour multi-touch, 480 × 800 |
| Card slots | 1 × SIM |
| Payments | |
| Contactless (NFC) | ISO 14443 A/B, MIFARE, Sony FeliCa |
| Chip card reader | ISO 7816 |
| Magnetic stripe reader | ISO 7811, tracks 1/2/3, bidirectional (indoor version) |
| Camera / scanner | 1D and 2D barcode scanning |
| Certifications (manufacturer’s declaration) | PCI PTS, EMV L1 and L2, EMV Contactless L1, PayPass, payWave, ExpressPay, D-PAS, Mastercard TQM, SRED, CE, FCC, RoHS |
| Connectivity and ports | |
| Connectivity | 2G/3G/4G LTE, Wi-Fi, Bluetooth, eSIM (optional) |
| Ports | MDB Master + MDB Slave / pulse + MDB Slave / RS232; USB-C (OTG) |
| Expansion module | Ethernet, USB-A (optional, uses the USB-C port) |
| Positioning | GPS, GLONASS, BeiDou |
| Power and build | |
| Power | 24 V DC or MDB bus power |
| Enclosure | IP65, IK10 (outdoor version) |
| Operating temperature | −20 to +70 °C |
| Dimensions (L × W × H) | 157 × 102 × 38 mm |
| Weight | 400 g |
| Mounting | NAMA mounting plate (optional) |
Payments and integration
Payment types
credit, debit, prepaid and closed-loop cards; chip, contactless, e-wallets, barcodes and QR codes
Management
remote terminal management (TMS): configuration, updates and apps without a site visit
Integration
semi-integration with your POS or PMS via SDK and API, or an all-in-one app running on the terminal (Android)
Pre-authorisation and incremental authorisation (as specified by the manufacturer): hold an amount up front and settle what was actually used. Availability depends on the payment application and the acquirer.
Accepts Visa and Mastercard cards (contactless and chip; magstripe on the indoor version) and mobile wallets – subject to the acquirer.
Certifications listed in the specification are as declared by the manufacturer and apply to specific models and hardware revisions. Certificate numbers are available on request.
Technical documentation
All prices exclude VAT (23%). Terminal activation and the payment application licence with TMS are charged separately.
WizarPOS distribution in Poland: Space BMS sp. z o.o., ul. Zbożowa 3/6, 30-002 Kraków, Poland · +48 533 909 533 · www.spacebms.com
