Payment terminals · Self-service

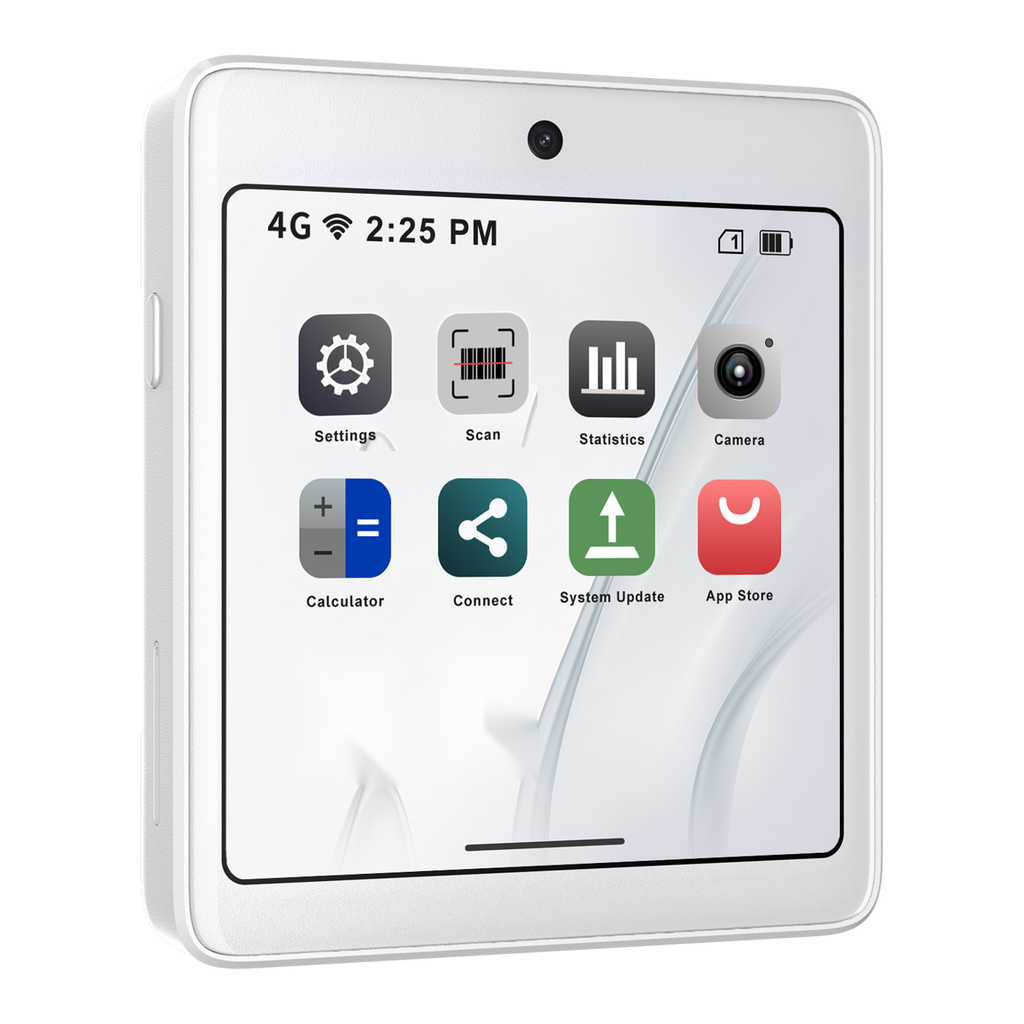

WizarPOS Q3mini Unattended Payment Module
Card and mobile payments built into vending machines, kiosks and EV chargers.
The Q3mini Unattended is a compact payment terminal designed to be built in. Fit it into a vending machine, kiosk, AC charger or gate and accept payments with no staff on hand. Power and data run over a single USB-C cable, and the supplied mounting plate and NAMA-standard plate make installation simple. The module has no battery and no IP rating of its own, so it is installed inside the host enclosure.
Where it fits
AC EV chargers
Ad hoc payment at chargers in garages and hotel or office car parks.
Vending
Coffee, snacks, laundries and car washes: cashless contactless payments.
Kiosks and gates
Tickets, entry, lockers and self-service in any venue.
Key features
Built to be integrated
Mounting plate and NAMA plate included, with mounting holes in the housing.
One cable
USB-C, 5 V 2 A, for both power and data.
4" touchscreen
480 × 480 pixels for amounts, prompts and customer messages.
Every payment method
EMV chip, contactless, e-wallets and QR codes.
Connectivity
4G, dual-band Wi-Fi, Bluetooth 5.0 and optional eSIM.
Pre-authorisation
Hold an amount before the service starts and settle it afterwards (per manufacturer).
Technical specification
| Platform | |
|---|---|
| Operating system | Secure Android 14 |
| Processor | Qualcomm Quad-Core 2.0 GHz |
| Memory | 2 GB RAM + 32 GB Flash |
| Display | 4" colour multi-touch, 480 × 480 |
| Card slots | 1 × SIM + 1 × microSD, or 2 × SIM |
| Payments | |
| Contactless (NFC) | ISO 14443 A/B, MIFARE, Sony FeliCa |
| Chip card reader | ISO 7816, EMV L1 and L2 |
| Camera / scanner | front 5 MP (barcodes and QR codes) |
| Certifications (manufacturer’s declaration) | PCI PTS, EMV L1 and L2, EMV Contactless L1, PayPass, payWave, ExpressPay, D-PAS, Mastercard TQM, SRED, CE, FCC, RoHS |
| Connectivity and ports | |
| Connectivity | 2G/3G/4G, Wi-Fi 2.4/5 GHz, Bluetooth 5.0, eSIM (optional) |
| Ports | 1 × USB-C (power and data); additional connectors and digital I/O optional |
| Positioning | GPS, A-GPS |
| Power and build | |
| Power | 5 V 2 A via USB-C; no battery |
| Dimensions (L × W × H) | 93.7 × 83.9 × 15.5 mm |
| Weight | 131 g |
| Operating temperature | −10 to +50 °C |
| Storage temperature | −20 to +70 °C |
| Humidity | 5–95% (non-condensing) |
| Enclosure | for installation inside the host enclosure (no IP rating) |
Payments and integration
Payment types
credit, debit, prepaid and closed-loop cards; chip, contactless, e-wallets, barcodes and QR codes
Management
remote terminal management (TMS): configuration, updates and apps without a site visit
Integration
semi-integration with your POS or PMS via SDK and API, or an all-in-one app running on the terminal (Android)
Pre-authorisation and incremental authorisation (as specified by the manufacturer): hold an amount up front and settle what was actually used. Availability depends on the payment application and the acquirer.
Accepts Visa and Mastercard cards (contactless and chip) and mobile wallets – subject to the acquirer.
Certifications listed in the specification are as declared by the manufacturer and apply to specific models and hardware revisions. Certificate numbers are available on request.
Technical documentation
All prices exclude VAT (23%). Terminal activation and the payment application licence with TMS are charged separately.
WizarPOS distribution in Poland: Space BMS sp. z o.o., ul. Zbożowa 3/6, 30-002 Kraków, Poland · +48 533 909 533 · www.spacebms.com
Specifications
| Brand | WizarPOS |
| Device type | Payment terminals |
