EV Charging · DC

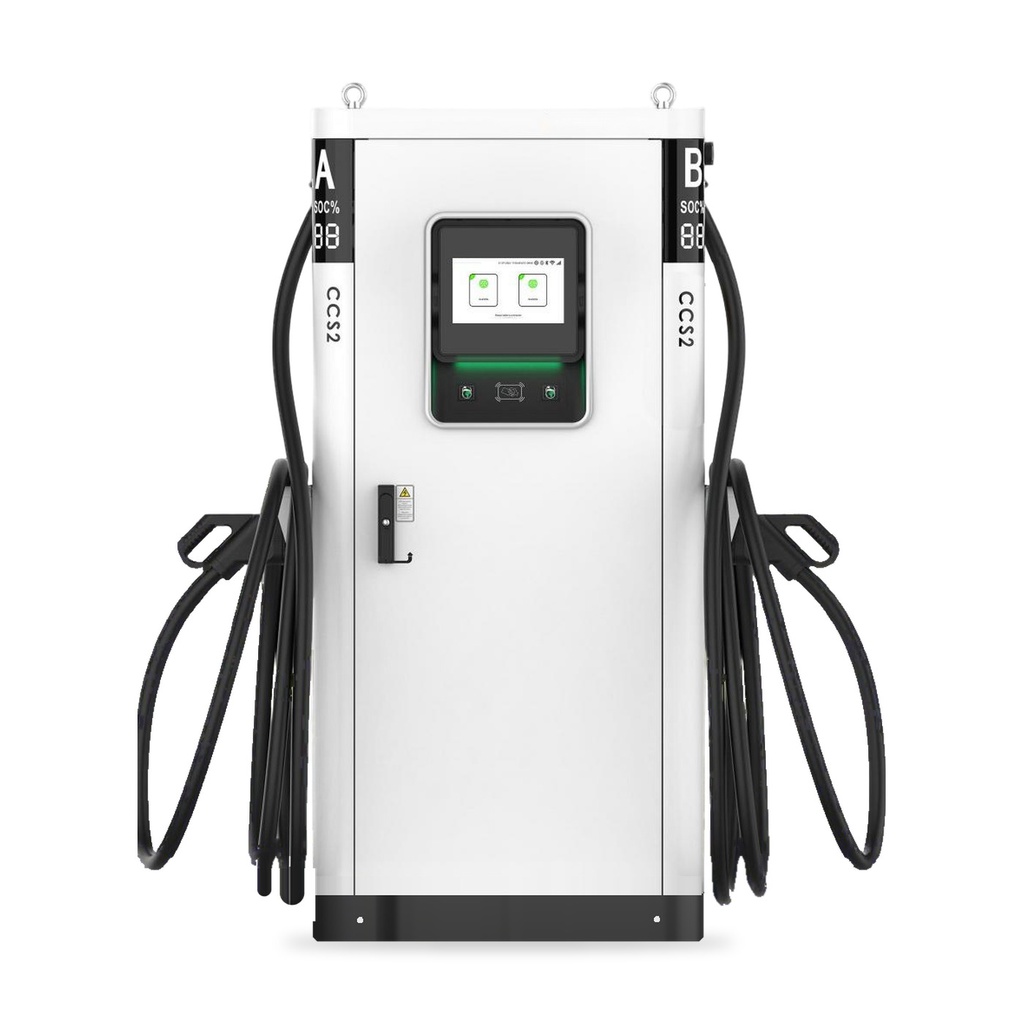

SPACE EV DC 120/180 Charger
A 120 or 180 kW DC fast-charging station with two CCS2 cables for shopping centres and high-traffic car parks.
Product code: SPC-EV-DC180
Use case
A shopping centre by a motorway junction sees drivers stopping for a quick coffee and a short shopping trip.
A 180 kW station charges two cars at once, and an energy storage system can support it at peak times.
How it works
High power
120 kW or 180 kW with up to 300 A per CCS2 output.
Dynamic sharing
Power is split between two cars in 30 kW steps.
Clear interface
10.1" touchscreen and an optional card-payment terminal.
Specifications
| Parameter | Value |
|---|---|
| Rated power | 120 kW or 180 kW |
| Connectors | 2 × CCS2, 4.5 m cables |
| DC output | 150–1000 V, up to 300 A; constant power 300–1000 V |
| Power sharing | Dynamic, 30 kW minimum step |
| AC input | 400 V; 184 A (120 kW) / 276 A (180 kW) rated |
| Communication protocol | OCPP 1.6J, OCPP 2.0.1 |
| Vehicle communication | ISO 15118, ISO 15118-2, DIN 70121 |
| User authentication | Mobile app, RFID, QR code, MAC autocharge, Plug & Charge; card-payment terminal optional |
| Connectivity | Ethernet (LAN), 4G, Wi-Fi |
| Grid connection | 400 V AC ± 10%, 3P + N + PE, TN-S / TN-C-S / TT |
| Peak efficiency | ≥ 95% |
| Power factor (full load) | ≥ 0.99 |
| Display | 10.1" touchscreen |
| Ingress / impact protection | IP54 / IK10 (screen IK08) |
| Operating temperature | −25 to +50 °C (derating 50–65 °C) |
| Cooling | Forced air |
| Dimensions (W × D × H) | 800 × 600 × 1700 mm |
| Weight | 310 kg (120 kW) / 355 kg (180 kW) |
| Compliance (manufacturer declaration) | CE, UKCA, RCM, RoHS, REACH, EU RED cybersecurity |
All technical data are manufacturer declarations. Specifications may change without notice. Edition 10.2026.
How we work with you
- Check of available power and cable routes on site.
- Choice of chargers and load management for your car park.
- Configuration of access: RFID cards, app or payment terminal.
- Installation, commissioning and connection to an OCPP back office.
Detailed technical documentation and drawings are available on request.
