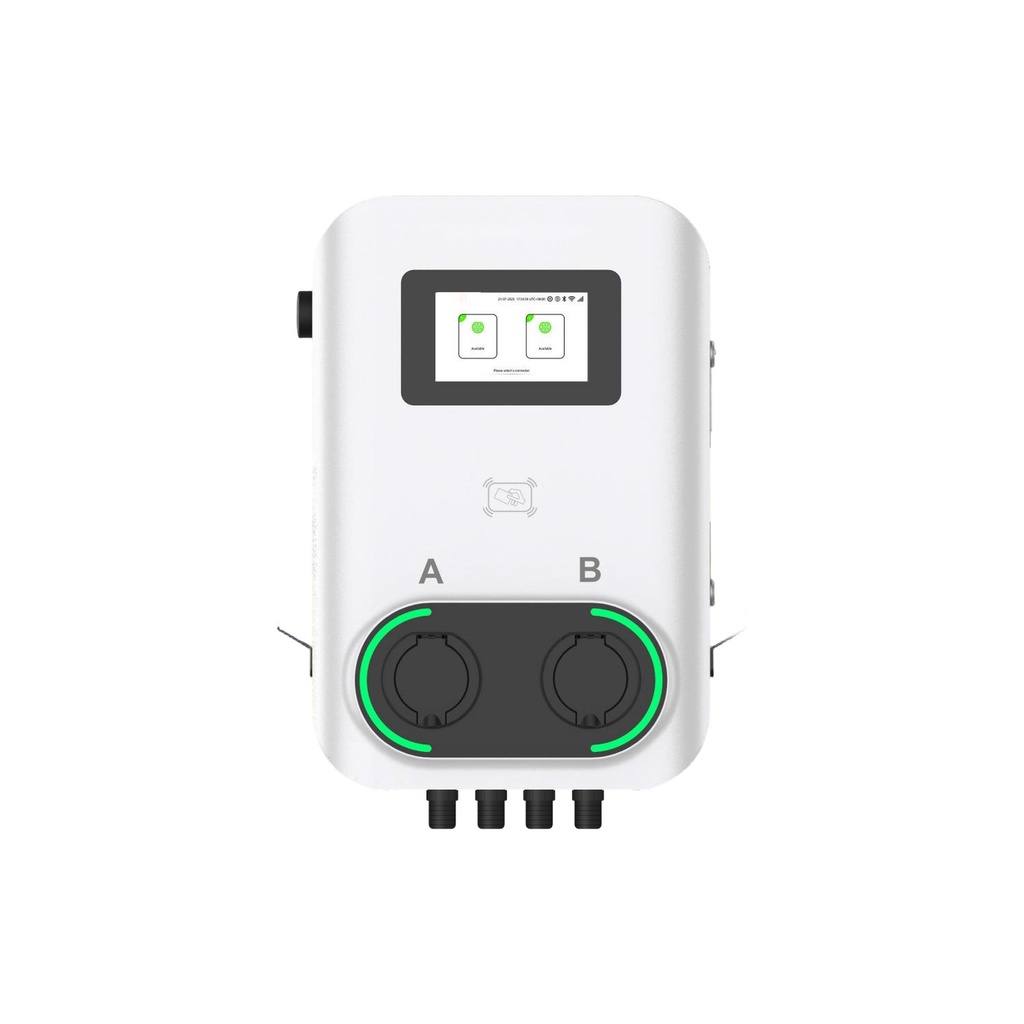

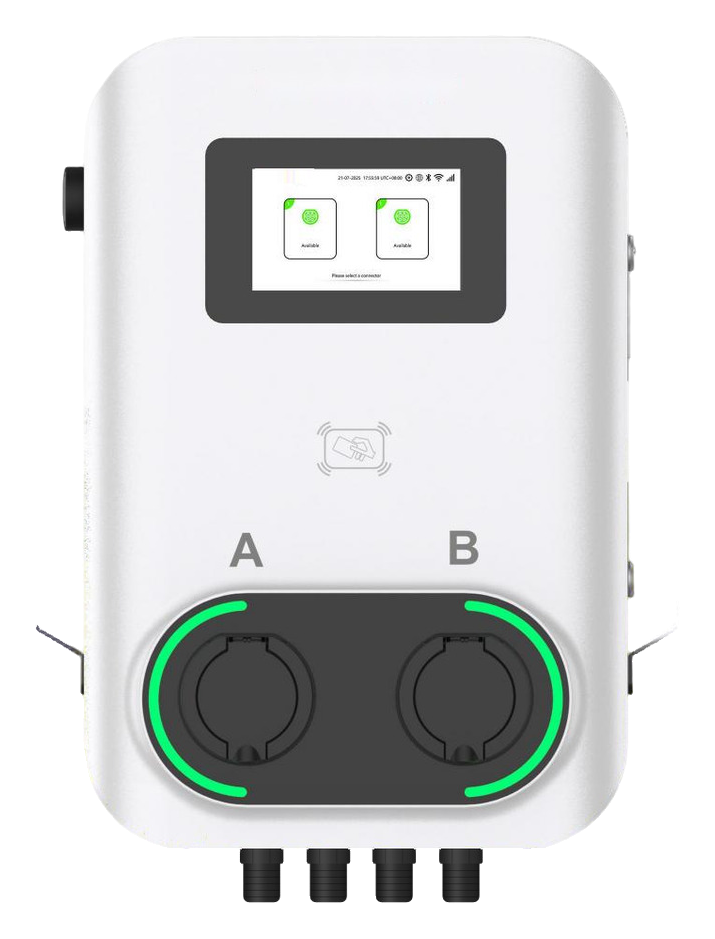

SPACE EV AC 2×22 Pro Charger

(0 review)

A dual-outlet 2 × 22 kW AC charger with two independent MID meters, OCPP 2.0.1 and ISO 15118, for semi-public car parks.

Price on request — official price list coming soon.

0.00 zł 0.00 zł  excl. VAT
0.00 zł  excl. VAT

0.00 zł / Units
  • Device type
  • Brand
  • Connectivity
  • Connectivity
  • Connectivity
  • Connectivity
  • Suitable for
  • Suitable for
  • Suitable for
  • Charging type
Add to cart
Buy now
Add to wishlist
Terms and conditions
We confirm every order by phone
Lead time and availability are confirmed individually
Request a quote
Documents
Datasheet – SPACE EV AC 2×22 Pro Charger (EN).pdf Karta katalogowa – Ładowarka SPACE EV AC 2×22 Pro (PL).pdf

EV Charging · AC

SPACE EV AC 2×22 Pro Charger

A dual-outlet 2 × 22 kW AC charger with two independent MID meters, OCPP 2.0.1 and ISO 15118, for semi-public car parks.

Product code: SPC-EV-AC2X22-PRO

Use case

An office building rents parking spaces to several tenant companies and needs a separate energy reading for each space.

Each outlet has its own MID meter, so every tenant can be billed accurately, and visitors can pay with an optional card terminal.

How it works

Separate readings

Two independent MID energy meters, one per outlet.

Future-ready

OCPP 1.6J and 2.0.1, with optional ISO 15118-2 vehicle communication.

Flexible access

RFID card, mobile app, automatic vehicle recognition (MAC autocharge) or an optional card-payment terminal.

Specifications

ParameterValue
Rated power2 × 11 kW or 2 × 22 kW (400 V)
Input current2 × 16 A or 2 × 32 A
ConnectorsType 2: 5 m tethered cables or sockets
Energy meter2 × MID meter (independent readings)
User authenticationRFID card, mobile app, MAC autocharge, card-payment terminal optional
Communication protocolOCPP 1.6J, OCPP 2.0.1; ISO 15118-2 optional
ConnectivityWi-Fi, Ethernet (LAN), 4G, Bluetooth; RS485
Residual current protectionType A + 6 mA DC; Type B optional
Display7" screen; emergency stop button
Ingress / impact protectionIP65 (cable) / IP54 (socket); IK10 (screen IK08)
Operating temperature−30 to +50 °C
Dimensions (W × D × H)400 × 230 × 600 mm; pillar 420 × 265 × 1495 mm
Weight20 kg (socket), 25 kg (cable)
HousingSteel with PC + ASA front cover
Compliance (manufacturer declaration)CE, CB, UKCA, RoHS, REACH, EU RED cybersecurity

All technical data are manufacturer declarations. Specifications may change without notice. Edition 10.2026.

How we work with you

  1. Check of available power and cable routes on site.
  2. Choice of chargers and load management for your car park.
  3. Configuration of access: RFID cards, app or payment terminal.
  4. Installation, commissioning and connection to an OCPP back office.

Detailed technical documentation and drawings are available on request.

Price on request — official price list coming soon.

Ask for a quote

+48 533 909 533

Technical documentation

Specifications

Device type EV chargers
Brand SPACE
Connectivity Bluetooth, Wi-Fi, Ethernet (LAN), Cellular
Suitable for Hotels and apartments, Offices and commercial buildings, Residential and rental
Charging type AC (alternating current)
