Payment terminals · Field and logistics

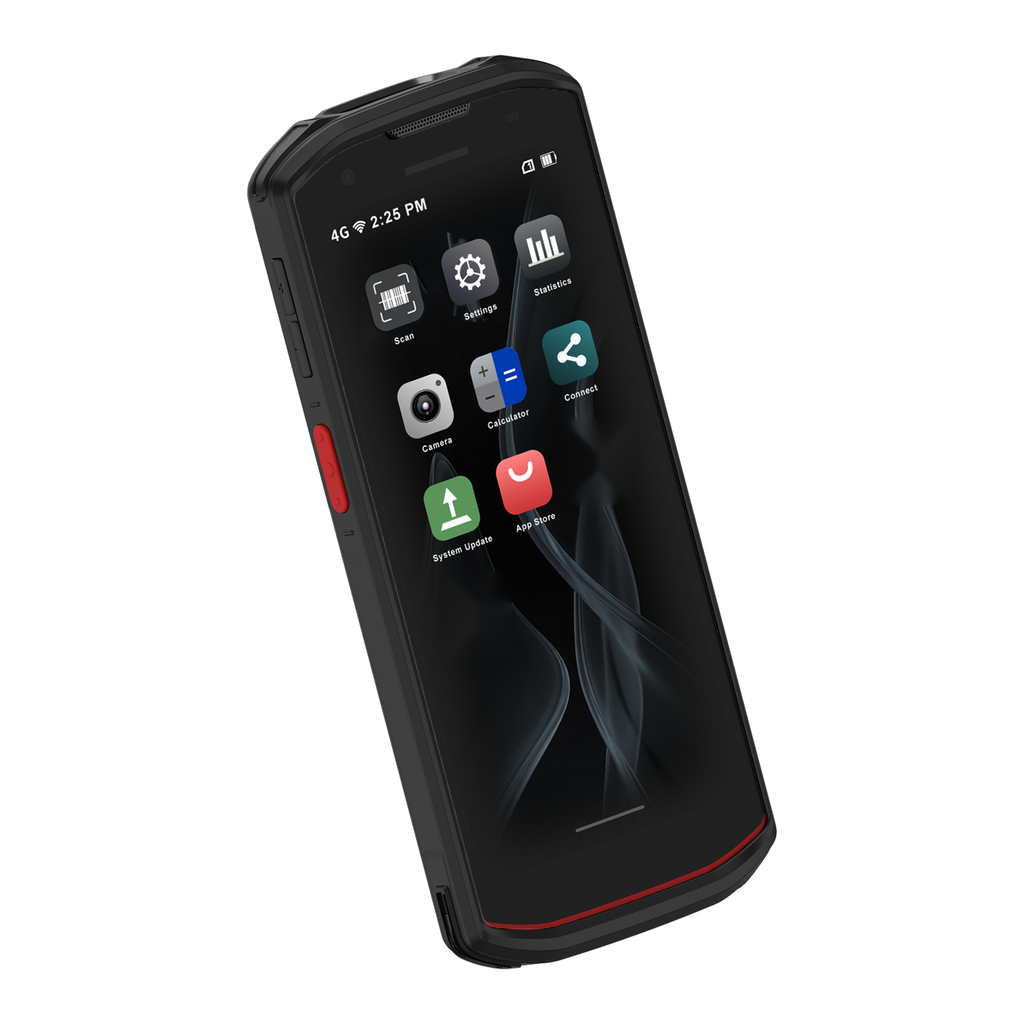

WizarPOS Q3PDA Rugged Handheld Terminal
Contactless payments and a scanner, built for rain, dust and drops.
The Q3PDA is a rugged handheld for teams that work in the field: couriers, parking attendants, outdoor terraces, hotel beach service and warehouses. It is rated IP67 and survives repeated 1.5 m drops onto concrete (MIL-STD-810H). A built-in 1D/2D scanner, contactless payments and an all-day battery turn a data collector and a payment terminal into one device.
Where it fits
Terraces and beaches
Orders and payment at the sunbed or outdoor table.
Couriers and delivery
Scan the parcel and take a contactless payment on delivery.
Warehouses and car parks
Stocktaking, ticket checks and fee collection in the field.
Key features
Rugged
IP67 and repeated 1.5 m drops onto concrete (MIL-STD-810H).
1D/2D scanner
All major symbologies, up to 5 reads per second.
5000 mAh battery
Lasts a full working day (per manufacturer).
5.5" display
720 × 1440 pixels with Gorilla Glass 3.
Performance
Qualcomm Octa-Core, 4 GB RAM + 64 GB Flash.
Positioning
GPS, A-GPS and Galileo.
Technical specification
| Platform | |
|---|---|
| Operating system | Secure Android 12 |
| Processor | Qualcomm Octa-Core 2.0 GHz |
| Memory | 4 GB RAM + 64 GB Flash |
| Display | 5.5" colour multi-touch, 720 × 1440, Gorilla Glass 3 |
| Card slots | 1 × SIM + 1 × SD, or 2 × SIM |
| Payments | |
| Contactless (NFC) | ISO 14443 A/B, MIFARE, Sony FeliCa |
| Camera / scanner | front 5 MP, rear 13 MP with flash; 1D/2D scanner |
| Sensors | accelerometer, gyroscope, compass, light and proximity; barometer (optional) |
| Certifications (manufacturer’s declaration) | PCI PTS, EMV L1 and L2, EMV Contactless L1, PayPass, payWave, ExpressPay, D-PAS, Mastercard TQM, SRED, CE, FCC, RoHS |
| Connectivity and ports | |
| Connectivity | 2G/3G/4G LTE (FDD and TDD), Wi-Fi, Bluetooth 5.0, eSIM (optional) |
| Ports | USB-C |
| Positioning | GPS, A-GPS, Galileo |
| Power and build | |
| Battery | 4.45 V, 5000 mAh, all-day use |
| Power | 5 V 2 A, USB-C charging |
| Enclosure | IP67; 1.5 m drops onto concrete (MIL-STD-810H); ESD ±15 kV air, ±8 kV contact |
| Dimensions (L × W × H) | 160 × 74 × 14.35 mm |
| Weight | 262 g |
Payments and integration
Payment types
credit, debit, prepaid and closed-loop cards; chip, contactless, e-wallets, barcodes and QR codes
Management
remote terminal management (TMS): configuration, updates and apps without a site visit
Integration
semi-integration with your POS or PMS via SDK and API, or an all-in-one app running on the terminal (Android)
Accepts Visa and Mastercard cards (contactless) and mobile wallets – subject to the acquirer.
Certifications listed in the specification are as declared by the manufacturer and apply to specific models and hardware revisions. Certificate numbers are available on request.
Technical documentation
All prices exclude VAT (23%). Terminal activation and the payment application licence with TMS are charged separately.
WizarPOS distribution in Poland: Space BMS sp. z o.o., ul. Zbożowa 3/6, 30-002 Kraków, Poland · +48 533 909 533 · www.spacebms.com
Specifications
| Device type | Payment terminals |
| Brand | WizarPOS |
| Connectivity | Bluetooth, Wi-Fi, Cellular |
| Suitable for | Retail and food service |
| Device type (old) | Payment terminals |
